CNC 2859

CNC 2859

Description

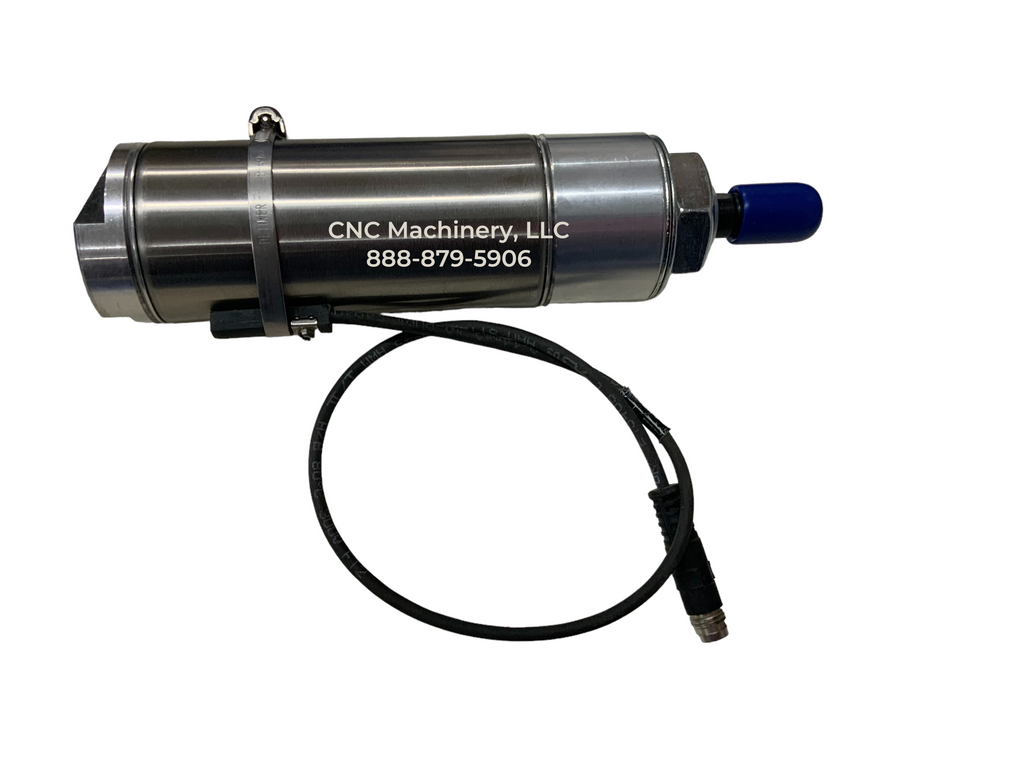

Cylinder Pneumatic AI Brake HR series

(Replaces Strippit® Part Number 803600-000)

Full Description

Replacement Cylinder, please measure length as Strippit ® used 2 different lengths on some machines

Installation Procedure

Using provided hardware mount cylinder. Wire sensor to existing connector. If there is not a plug you will have to strip and splice. Turn power on and adjust sensor to illuminate LED when cylinder is retracted.
