CNC 4272
Amplifier Fanuc dual reconditioned

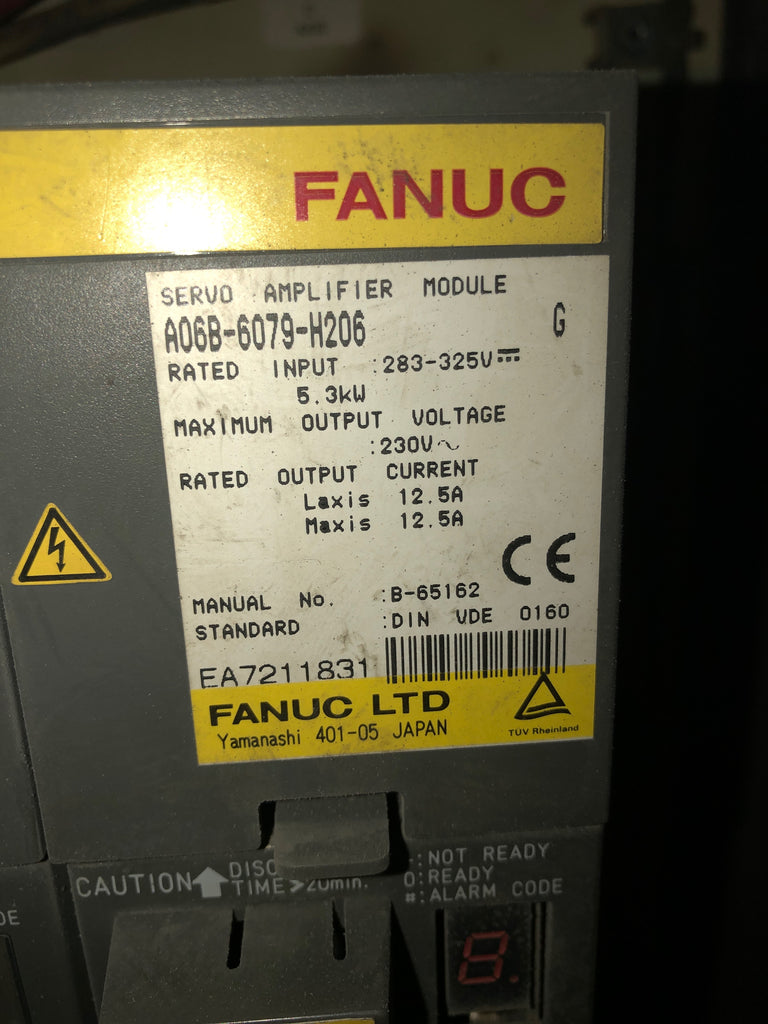

replaces Fanuc® A06B-6079-H206
Full Description
This Amplifier features a dual I/O, allowing it to be used to drive 2 independent axis. This is typically used by Strippit® to drive C,AND T
Notes
WARNING......HAZARDOUS VOLTAGES EXIST EVEN AFTER POWER IS OFF. YOU MUST OBSERVE RED LED ON UNIT TO WAIT FOR COMPLETE DISCHARGE TO BEGIN ANY WORK. Failure to follow this warning my result in personnel or equipment hazard.
Must return core to avoid additional charges
Installation Procedure
Open top cover and remove 2 nuts holding buss connections, remove all plugs and connectors being careful to mark or take a photo, remove motor connection wires, removes 2 retaining screw, one on top, one on the bottom of the amplifier. Wiggle unit gently side to side to remove. Replace unit, ensuring all connections are tight. Power up and inspect for error lights.
